Griffiths

Central location within the Vancouver / Lower Mainland region.

7705 Griffiths Drive, Burnaby, BC, V3N 4P1 – View Google Map

A new community is rising in Burnaby. The new Bridge Studios Griffiths location will be nestled in a central up and coming area, surrounded by amenities and transportation.

HVAC

• Office HVAC system provided with state-of-the-art Variable Refrigeration Flow  ( VRF) system utilizing internal energy recovery. VRF is a fossil fuel free system with the latest industry technology providing the highest comfort level and performance with the least amount of energy cost.
• Sound Stages are heated and air-conditioned utilizing Heat Pump Technology & Heat Recovery.  The Heat Pump ERV system is a fossil fuel free system utilizing the latest industry technologies providing the highest performance with the least operational cost. All sound stages are controlled via state-of-the-art BAS (Building Automation System) to optimize the HVAC system performance and energy while providing additional comfort for the occupants.

Sound/Acoustics

• Exceptional soundproofing for control of all exterior sounds
• Clear span soundstages are constructed from 9 1/2″ thick concrete exterior walls and STC 70 interior demising walls
• Max interior noise level of 25 dBA (NC 20) weighted decibels

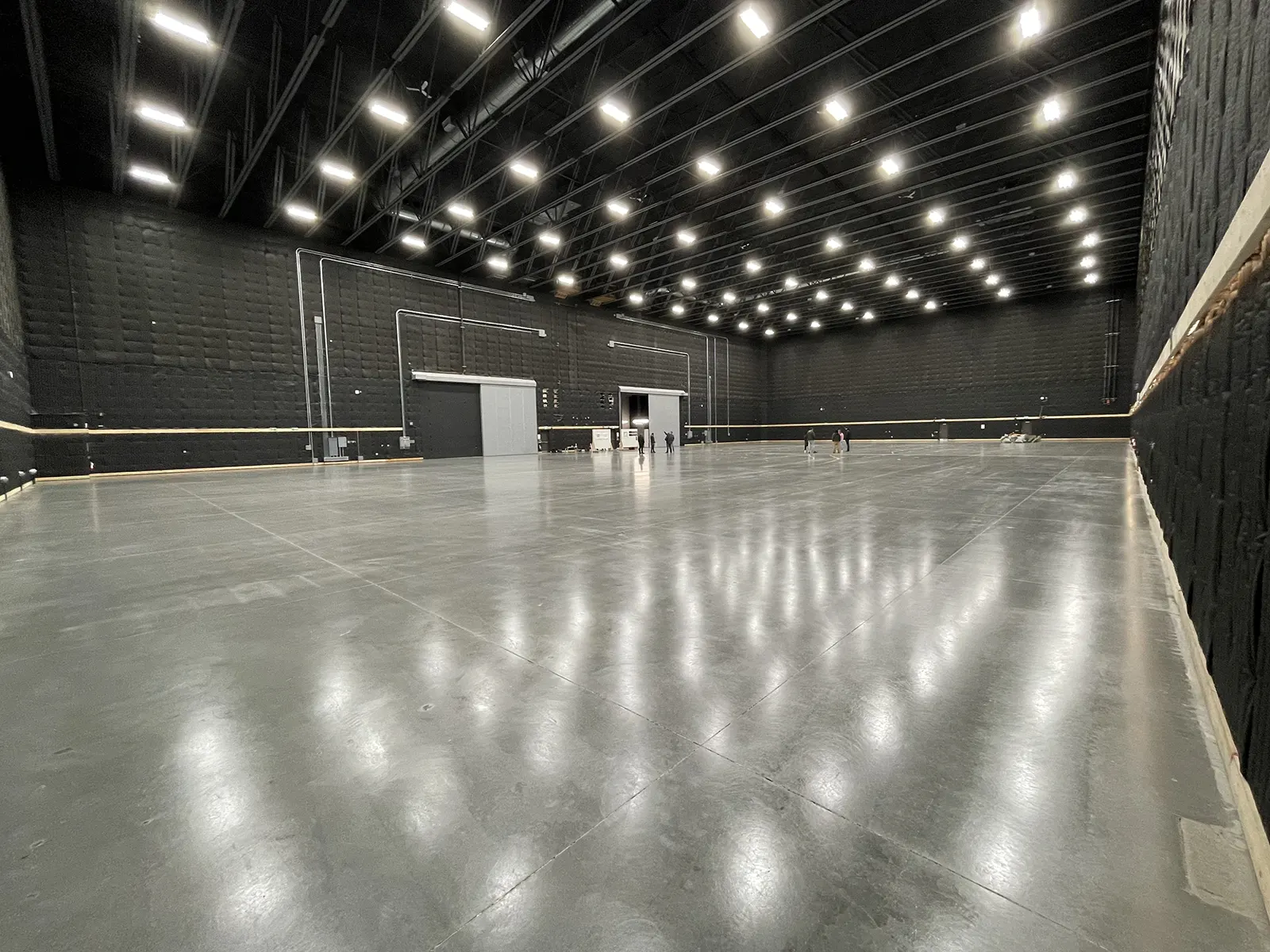

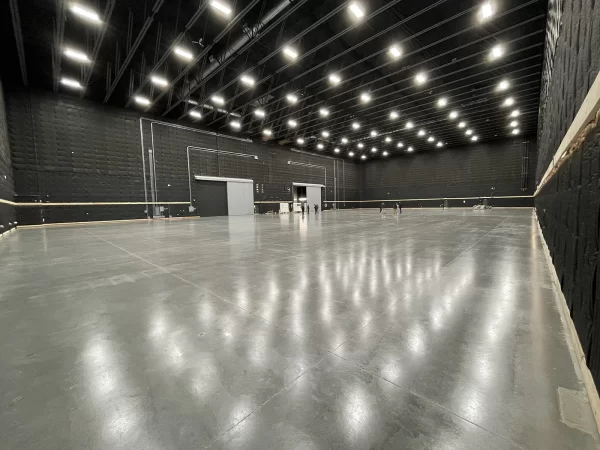

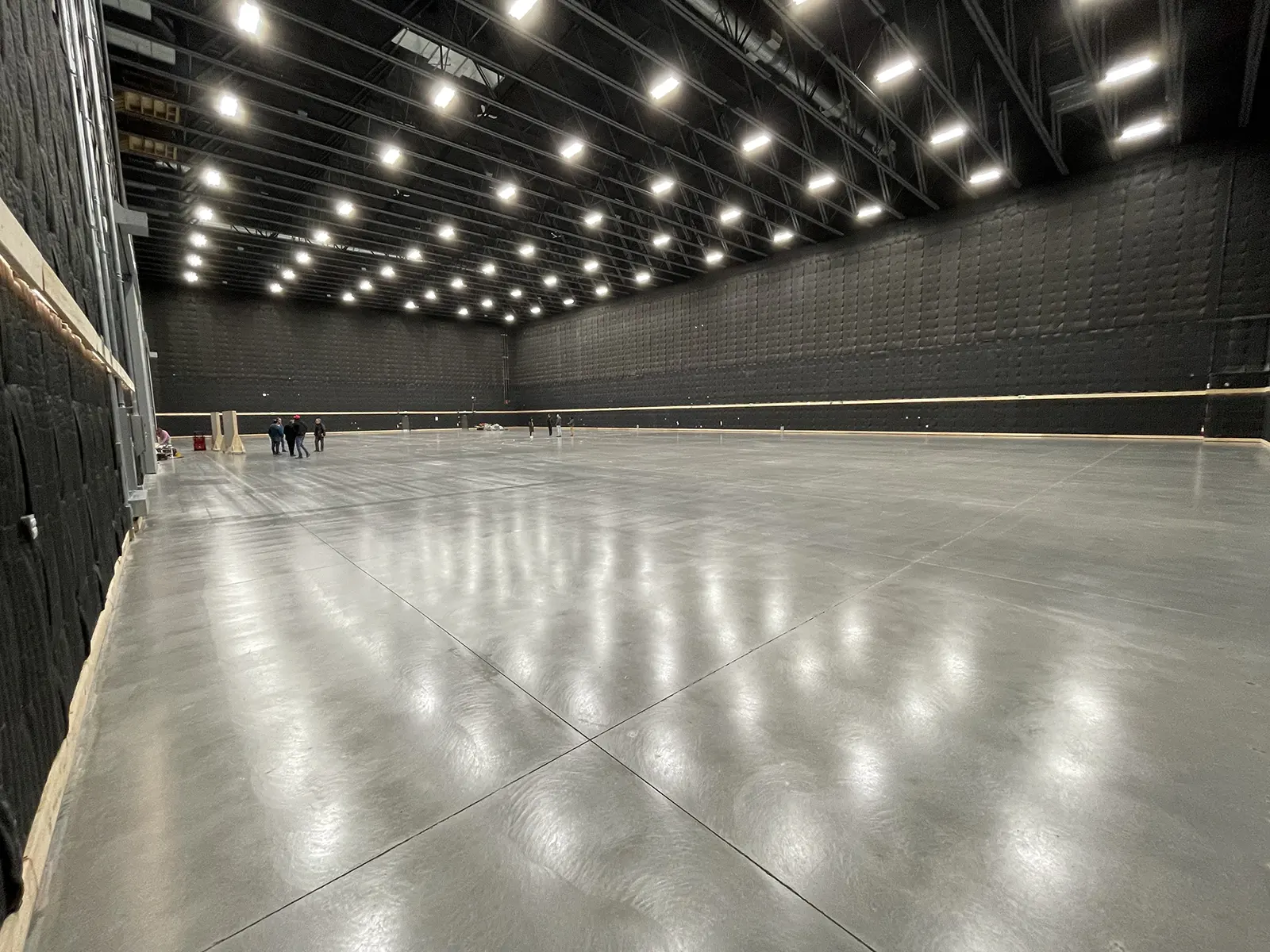

• Interior walls and ceiling are lined with Insul-Quilt sound absorbing insulation for optimum room acoustics

Connectivity/Internet

• Wi-fi 6 connectivity throughout stages, support and office spaces
• Redundant, burstable up to 10Gbps internet connectivity
• 10Gpbs fiber optic network throughout site
• VoIP phone system

Electrical

• Relying on 100% renewable BC Hydro electricity
• Separate dimmer rooms for each stage
• Each stage has 4 x 400 amp switches for 1,600 amps each
• LED lighting throughout facility
• Low light stumble lights in stage for safe exiting
• Emergency lighting in grid to allow safe exit/egress for all crew should the power go out
• Each stage has 4 x 400 amp contactor switched camlocks
• 1 contactor is located on the stage floor
• 3 contactors are located in the stage specific dimmer rooms

Bell & Light System

• Director control system with multiple wall jacks on each of the 4 walls with 100 ft cable to control bell, lights and HVAC system shutdowns

Bridge Studios is proud to commit to making Griffiths Studios a 100% Fossil Fuel Free Facility.

Commitment

• The entire site is designed to achieve the highest standards of sustainability and environmental responsibility.
• The facility uses absolutely No Fossil Fuels and is completely powered by Electricity.
• In British Columbia electricity is 100% generated by Hydro Power, meaning it’s 100% clean and renewable.
• The separate waste/recycling building is designed to make recycling easy and reducing the waste generated by the site. Wood, plastic, paper, glass, metal, and organics can all be separated.
• The lot also has areas where catering can grow fresh vegetables, and there are Bee hives on the roofs.

Technical

• All man lifts, forklifts and golf carts are battery operated. Fully electric vehicles.
• 35 of the personal vehicle parking spots have 220v EV plug ins.
• The site has one Supercharger, and electrical hook-ups for Base Camp trailers to plug right in.
• HVAC VRF (Variable Refrigerant Flow) system uses NO fossil fuels.
• LED lighting throughout facility.
